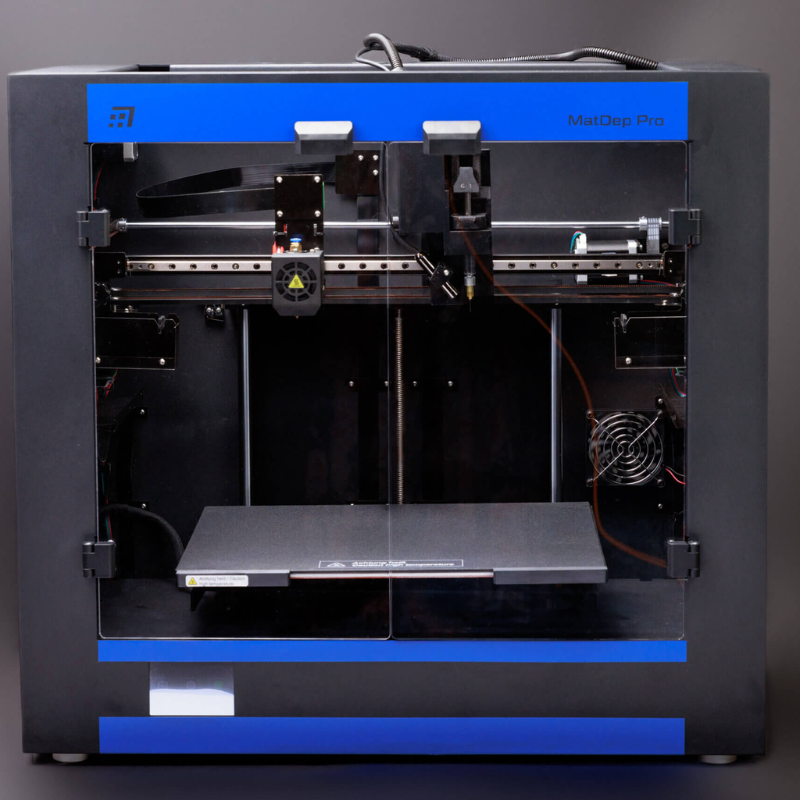

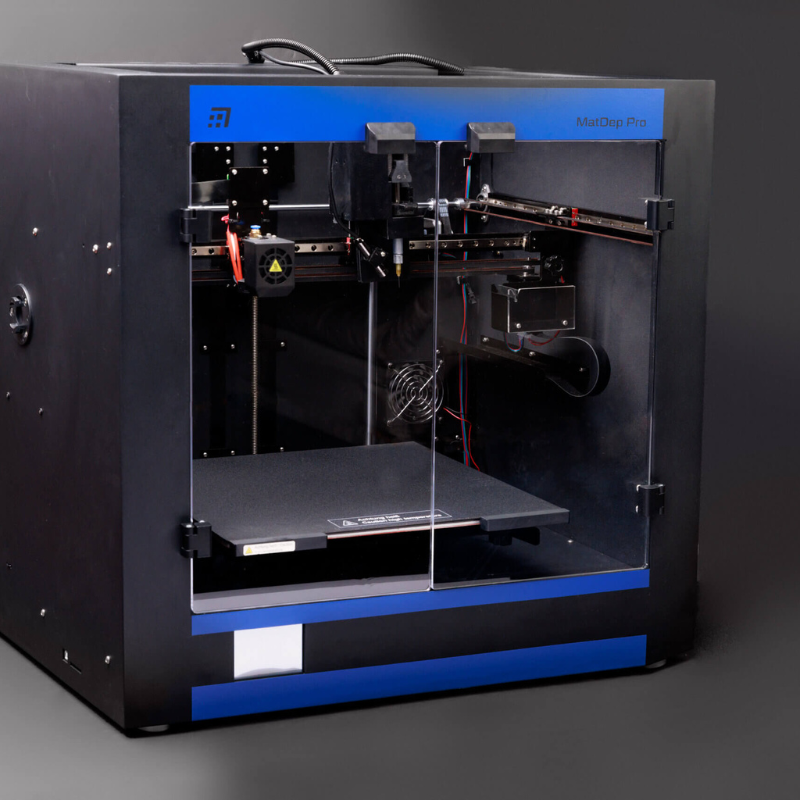

MatDep Pro

Description:

The MatDep Pro is the ultimate device for printing smart devices with embedded circuitry.  3D printing is no longer limited to creating static or passive objects. It can also create electronics with functional inks and pastes that have dynamic or active properties, such as conductivity, magnetism, or responsiveness to stimuli.  The MatDep Pro can print with viscous inks that contain various building blocks, such as metallic and oxide particles, polymers, hydrogels, and functional elastomers. These inks can be used to create devices with programmed functionality, such as printed electronics, rechargeable batteries, sensors, actuators, and soft robots. Accelerate your innovation, research and development and discover new applications and possibilities. Using the most advanced 3D printers available can expand your field of innovation and help you stay ahead of the curve.

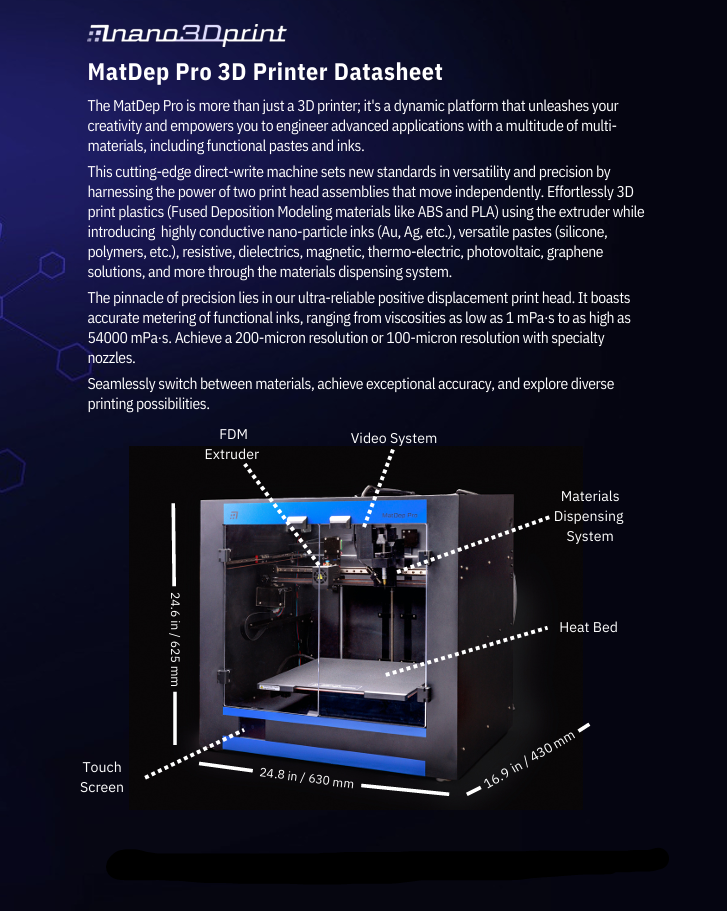

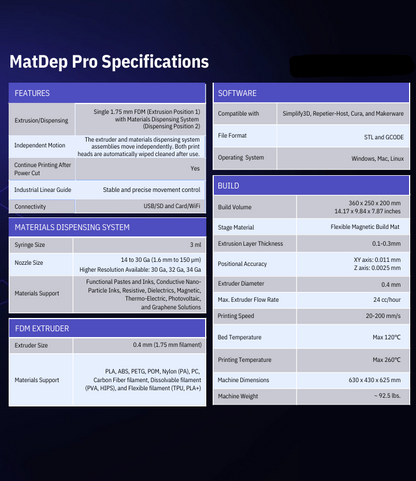

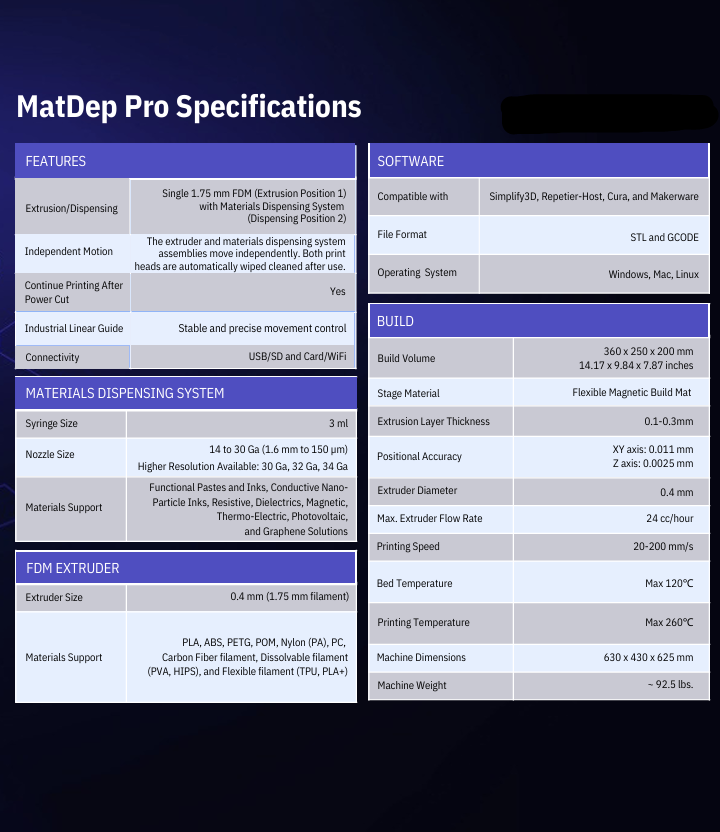

Specifications:

Two Printheads:

• Optimized Print Heads: FDM Extruder and Materials Dispensing System

Independent Motion:

• The extruder and materials dispensing system assemblies move independently. Both print heads are automatically wiped cleaned after use.

The FDM Extruder (Print Head 1) 3D Prints:

• PLA, ABS, PETG, POM, Nylon (PA), PC, Carbon Fiber filament, Dissolvable filament (PVA, HIPS), and Flexible filament (TPU, PLA+)

The Materials Dispensing System (Print Head 2) 3D Prints:

• Functional Pastes and Inks, Conductive Nano- Particle Inks, Resistive, Dielectrics, Magnetic, Thermo-Electric, Photovoltaic, and Graphene Solutions

Resolution:

• Achieve a resolution of 200-microns, and attain even finer resolutions of up to 100-microns with specialty tips on the materials dispensing system.

Materials Dispensing System Viscosity Range:

• Works with all inks and pastes with viscosities ranging from 1mPa·s to 54000 mPa·s.

Materials Dispensing System Syringe Size:

• 3 ml

Materials Dispensing System Nozzle Size:

• 14 to 30 Ga (1.6mm to 150μm) Higher Resolution Available: 30 Ga, 32 Ga, 34 Ga

FDM Extruder Size:

• 0.4 mm (1.75 mm filament)

Large Format Build Volume:

• 360x250x200mm or 14.17 x 9.84 x 7.87 inches

Industrial Linear Guide:

• Stable and precise movement control

Continue Printing After Power Cut:

• Yes

Video Inspection System:

• Real-time magnifying video inspection system for more precise adjustment control of the dispensing system.

Machine Dimensions:

• 630 x 430 x 625 mm

Machine Weight:

• ~ 92.5 lbs.

Max. Heat Bed Temperature:

• Max 120°C

Printing Temperature:

• Max 260°C

Printing Speed:

• 20-200 mm/s

Max. Extruder Flow Rate:

• 24 cc/hour

Positional Accuracy:

• XY axis: 0.011 mm and Z axis: 0.0025 mm

Extrusion Layer Thickness:

• 0.1-0.3 mm

Stage Material:

• Flexible Magnetic Build Mat

Software / File Format / Operating System:

• Compatible with Repetier-Host, Cura, Makerware, Simplify3D / STL and GCODE / Windows, Mac, Linux

Connectivity:

• USB / SD Card

FEATURES:

Print Electronics:

• Make PCBs. Wearable technologies. Conductors. Solar Cells. Flexible electronics. And beyond.

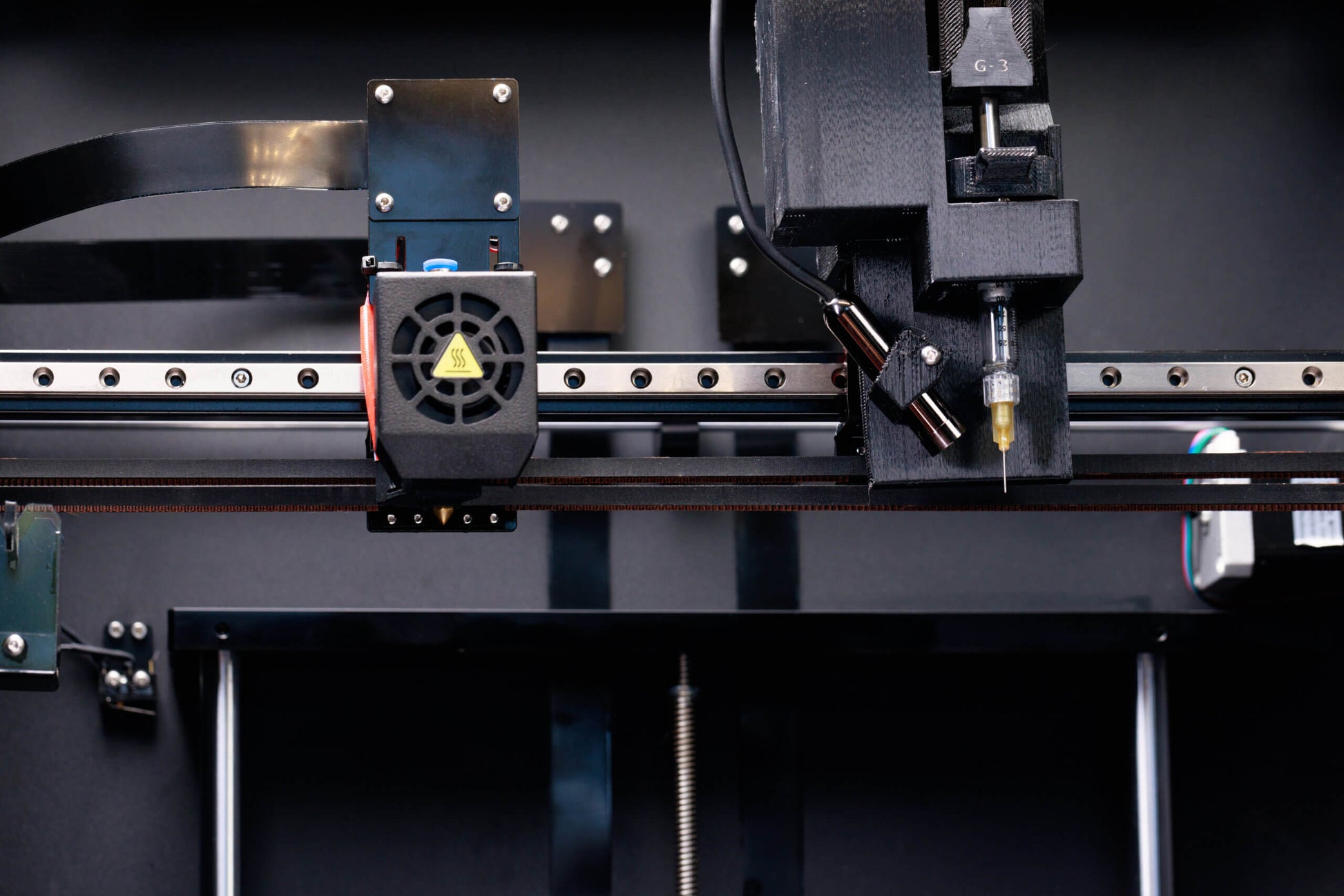

Independent Motion Technology:

• The FDM extruder and a materials dispensing system are each equipped with independent motion. The independently moving print heads are cleaned off after each use, eliminating cross-contamination and delivering better print quality, speed, and reliability.

Use a Wide Range of Substrates:

• Print on a wide range of substrates, sizes, or shapes to a depth of 1 cm.

Video Inspection System:

• Monitor your multi-material 3D printing progress in real-time from your device to ensure your high resolution 3D designs print perfectly.

Enjoy Accurate 3D Prints:

• Achieve accuracy in layer height, surface finishing, tolerance, and roundness.

Simple To Use:

• Control the MatDep Pro from your computer or the full-color touch screen. It’s compatible with SD card for direct printing.

Included:

General Tools & Materials:
▪ Allen Wrench
▪ Dispenser/Syringe Adapter & Clamps for Plastic Syringe (x1)
▪ Dispenser/Syringe Adapter & Clamps for Glass Syringe (x1)
▪ Empty Plastic Syringes (x5)
▪ Syringe Caps (x5)
▪ Transfer Adapters (x5)
▪ Filament Holder (x1)
▪ Filament Tube Guide (x1)
▪ Power Cable
▪ Mark III Dispensing System
▪ Video Monitoring System
▪ Simplify3D Software License (electronically delivered)
